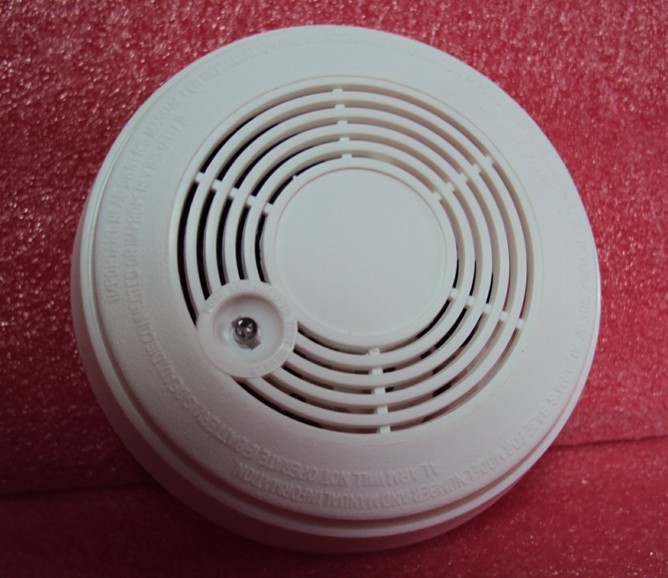

Wireless battery powered CO (carbon monoxide) gas and smoke
combined detector
Introduction:
The carbon monoxide and smoke combination alarm. This is one Single
Station alarm. And the unique technology on market with wireless function.
There are two wirless plan for choose 2262 or 1547.
Specification:
Power Supply: one 9V carbon zinc battery 6F22.
Sensitivity Setting:
CO: Alarm Density:
30ppm,alarms not activate within 120minutes
50ppm, alarms within 60~90 minutes
100ppm, alarms within 10~40 minutes
300ppm, alarms within 3 minutes
SMOKE: 1%~5%/FT
Standby Current: <20uA
Alarm Current: <30mA
Operation Ambient Condition: 5~40degree, 20~90%R.H.
Features:
·Loud 85 decible alarm.
·High sensitivity electrochemical carbon monoxide sensor
·Powered by one 9V battery.
·The alarm sound pattern is pulsed four short alarm beeps for CO
alarm and continuous beeps for smoke alarm. The sound
pattern is smoke pattern as CO and smoke occur simultaneously. The
red LED will flash while in alarm mode.
·One “chirp” every 30 seconds is an indication that the battery is
low(need replacement) or the unit is malfunctioning.
·Test button to test the units electronics and verifies proper unit
operation.
·Green and red LED lights that indicate normal operation and alarm
status.
·The unit will sound “chirp” and red LED flashes once as power up.
Green LED: The green LED flashes every 30 seconds to indicate the
unit is operating properly.
Red LED: When a dangerous level of carbon monoxide is detected and
a potential fire is detected, the red LED will flashes and
the alarm pattern will sound.
The CARBON MONOXIDE (CO) & SMOKE combination alarm monitors the air
for the presence of CO or a potential fire.
The alarm will sound and be accompanied by the flashing red LED
light when there are high levels of CO present or there is a
potential fire present.
CAUTION: This alarm will only indicate the presence of carbon
monoxide gas at the sensor. Carbon monoxide gas may
present at other area.
